Description:

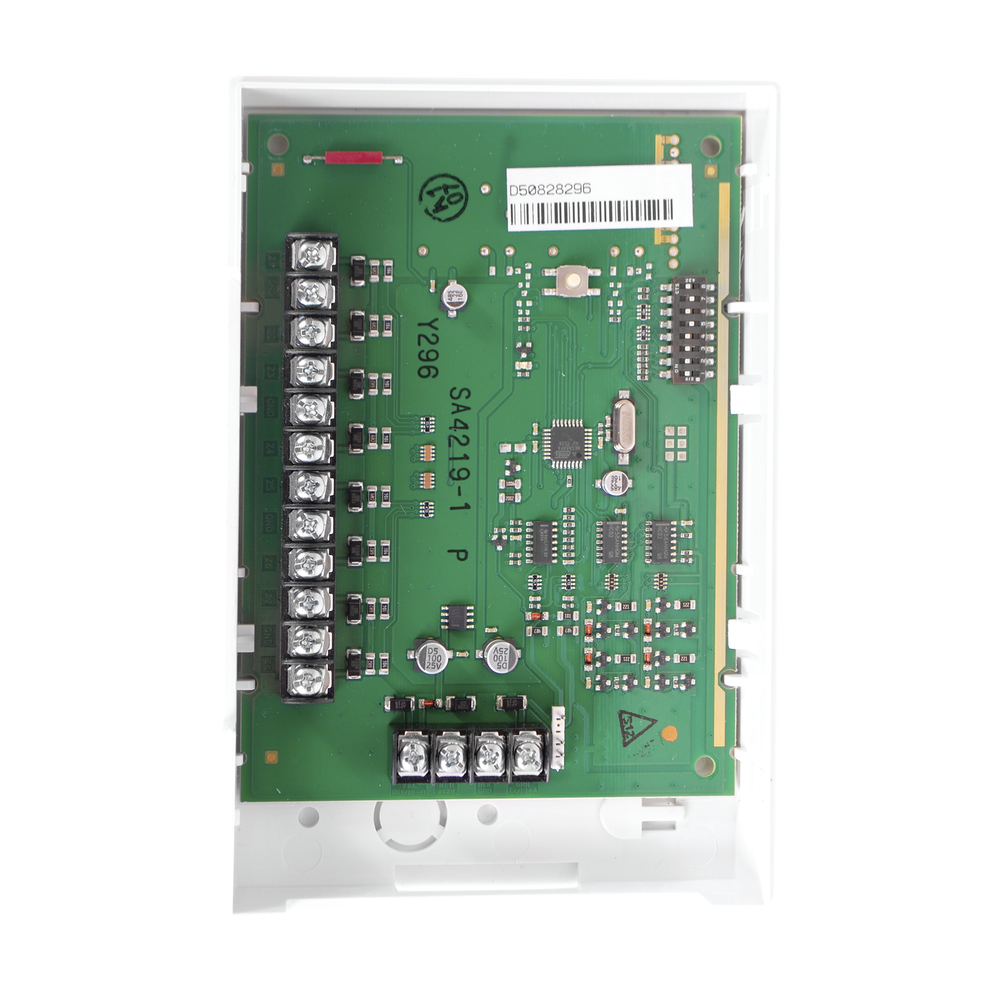

Addressable eight-zone expander for Honeywell ECP bus addressable systems
Product advantages:
Can be located anywhere along the four-wire addressable ECP bus
Simple DIP switch addressing to select range of zone numbers
Adds up to eight class B zone inputs to an ECP bus addressable system, each with 1K end-of-line resistors
Class B loops provide a broad, 300 ohm tolerance
Supervised for open, shorted and normal circuit
conditions
UL Listed for commercial burglary applications
Recommended use:
Use for commercial systems when deploying conventional detectors in an ECP zone expandable system
Mounting recommendations:
■ On a flat surface, centrally located to monitor up to eight zones from nearby detectors
Compatibility:
■ All VISTA control panels that are compatible with ECP bus zone expandability such as VISTA-20P and VISTA-21iP
■ Not compatible with V-Plex control panels Product dimensions:
6.438" W x 4.25" H x 1.25" D
Power:
■ Supplied by the control panel’s four-wire ECP bus: 30mA at 12VDC
■ External power supply option: 30mA at 12VDC (maximum)
Temperature:
32o F to 122o F (0o C to 50o C)
Humidity:
5-95% relative, non-condensing
Included items:
Eight 1K end-of-line resistors
Listings:
UL Listed to UL1610, UL1635, UL464, UL609, UL365, UL1641, UL985, UL1023
-
