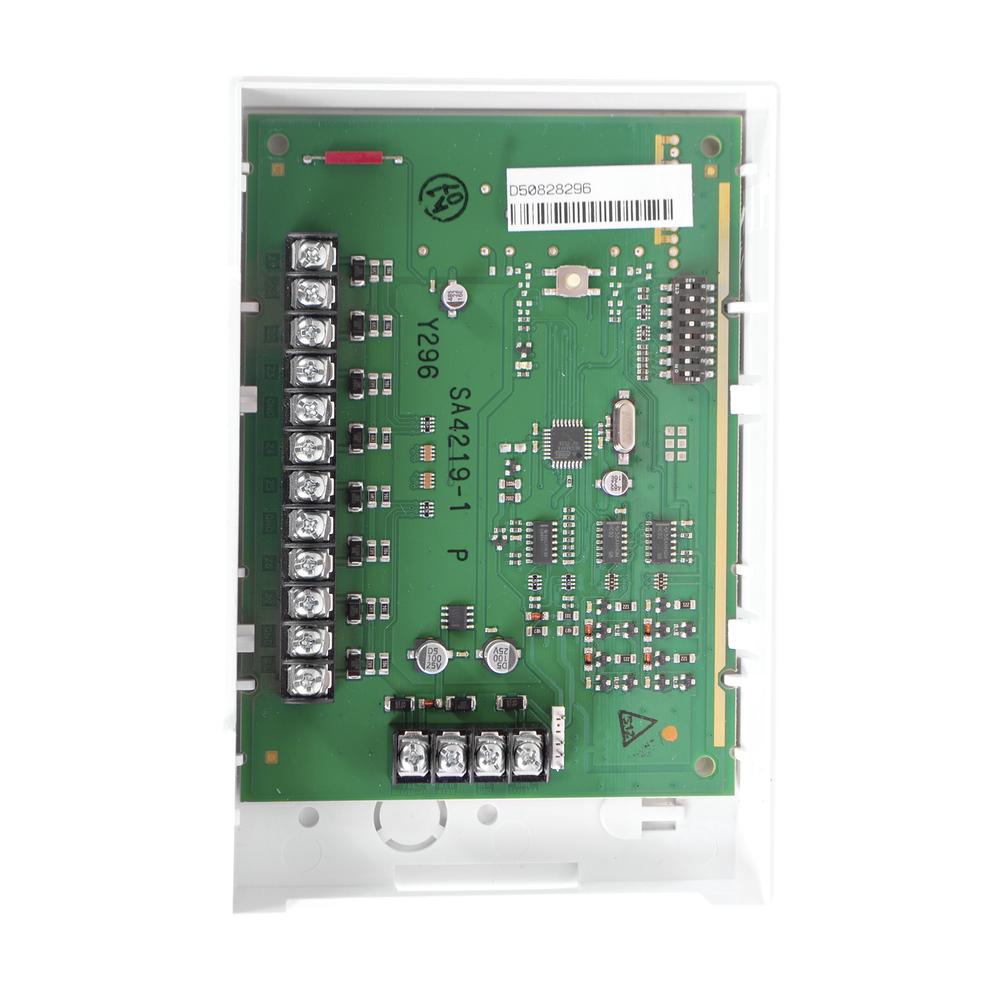

EXPANSOR 8 ZN PARA PANELES DE ALARMA VISTA

Description:

Addressable eight-zone expander for Honeywell ECP bus addressable systems

Product advantages:

• Can be located anywhere along the four-wire addressable ECP bus

• Simple DIP switch addressing to select range of zone numbers

• Adds up to eight class B zone inputs to an ECP bus addressable system, each with 1K end-of-line resistors

• Class B loops provide a broad, 300 ohm tolerance

• Supervised for open, shorted and normal circuit

  conditions

• UL Listed for commercial burglary applications

  Recommended use:

  Use for commercial systems when deploying conventional detectors in an ECP zone expandable system

  Mounting recommendations:

■ On a flat surface, centrally located to monitor up to eight zones from nearby detectors

Compatibility:

■ All VISTA control panels that are compatible with ECP bus zone expandability such as VISTA-20P and VISTA-21iP

■ Not compatible with V-Plex control panels Product dimensions:

6.438" W x 4.25" H x 1.25" D

Power:

■ Supplied by the control panel’s four-wire ECP bus: 30mA at 12VDC

■ External power supply option: 30mA at 12VDC (maximum)

Temperature:

32o F to 122o F (0o C to 50o C)

Humidity:

5-95% relative, non-condensing

Included items:

Eight 1K end-of-line resistors

Listings:

UL Listed to UL1610, UL1635, UL464, UL609, UL365, UL1641, UL985, UL1023

■ Locate anywhere on the ECP bus.
